Description

Price: INR2,389.04
(as of Mar 24, 2026 21:49:25 UTC – Details)


Serial DB15 cable, not P-a-r-a-l-l-a-l cable, both sides PE + PVC overmolded.

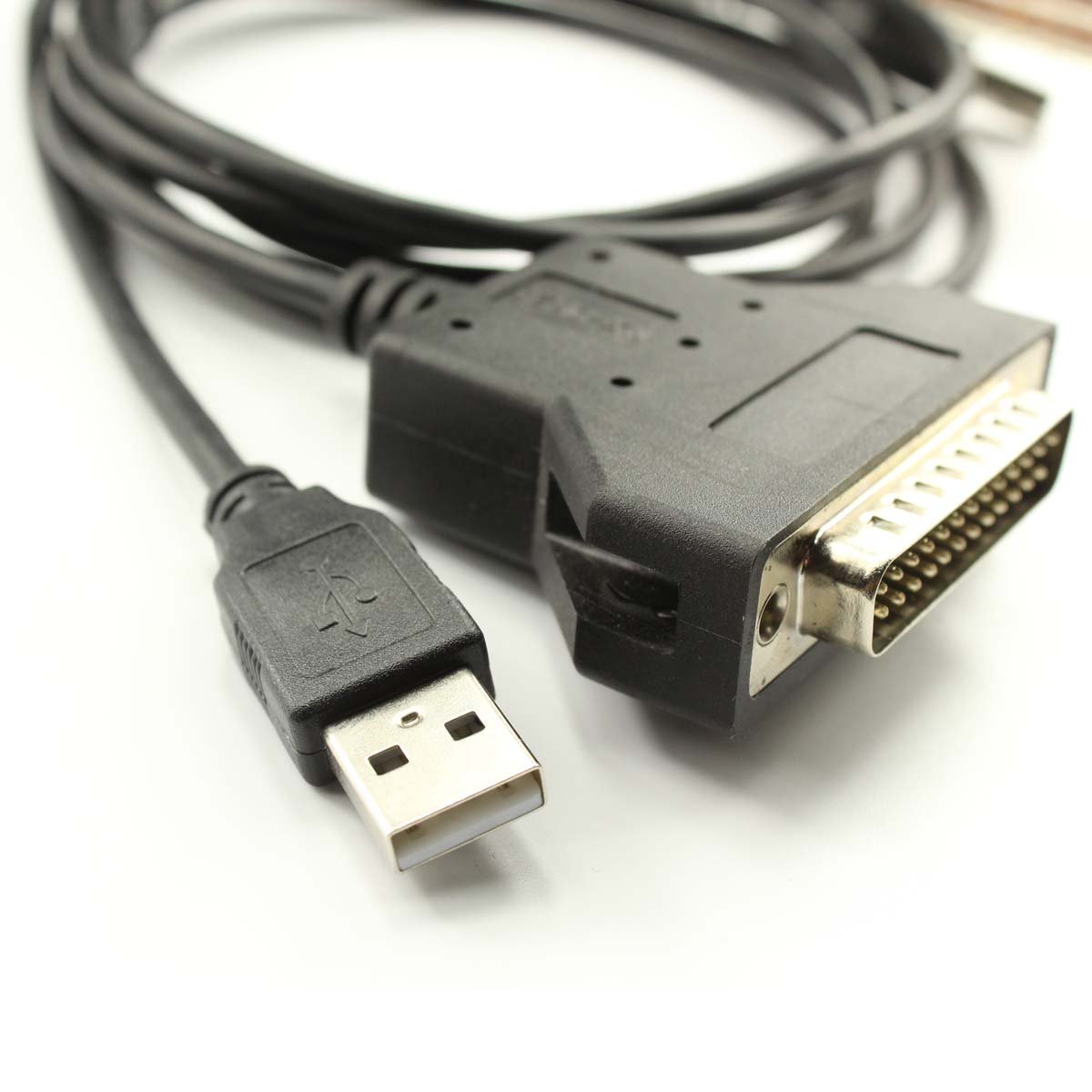

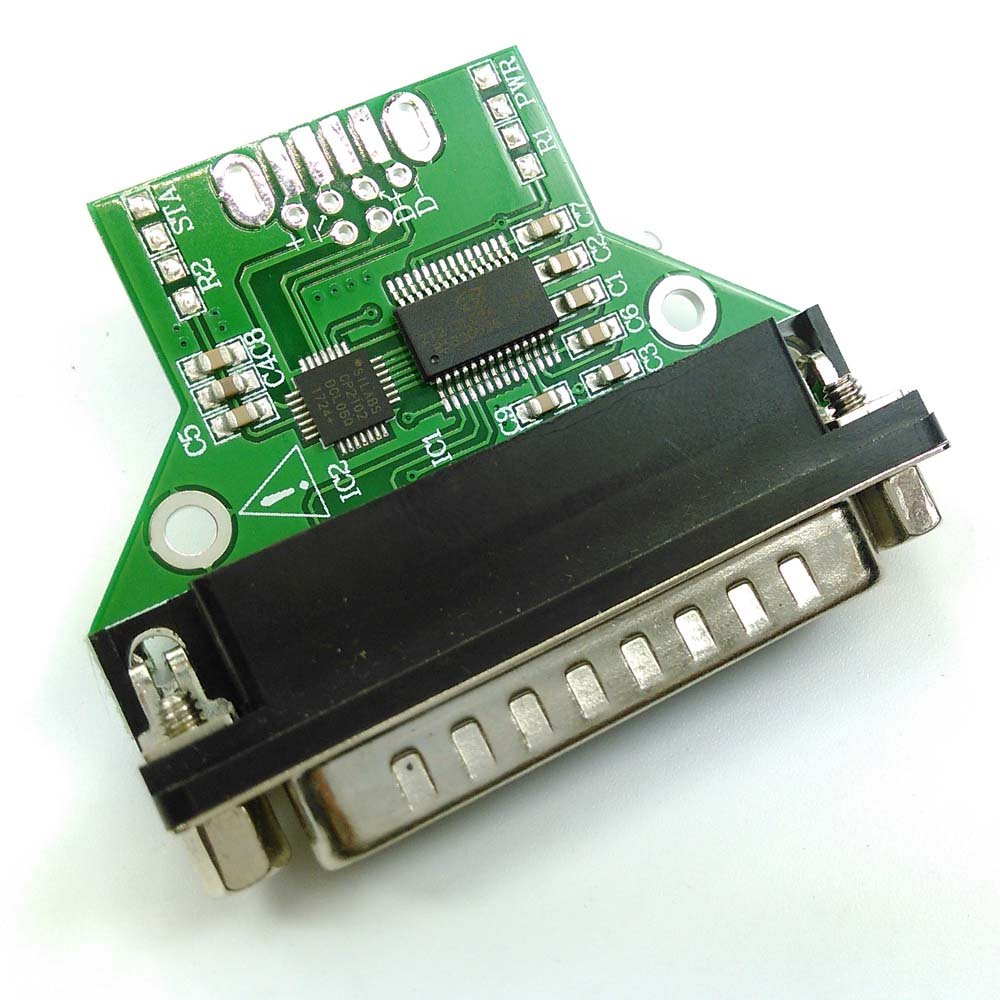

CP2102 + ZT213 chip USB RS232 to DB25 serial printer cable
USB 2.0 standard, 12 m full speed support.
Support Win 7, Win 8, 8.1, Win 10, Mac, Android.
30 cm long, DB25 side PE + PVC oversprayed.

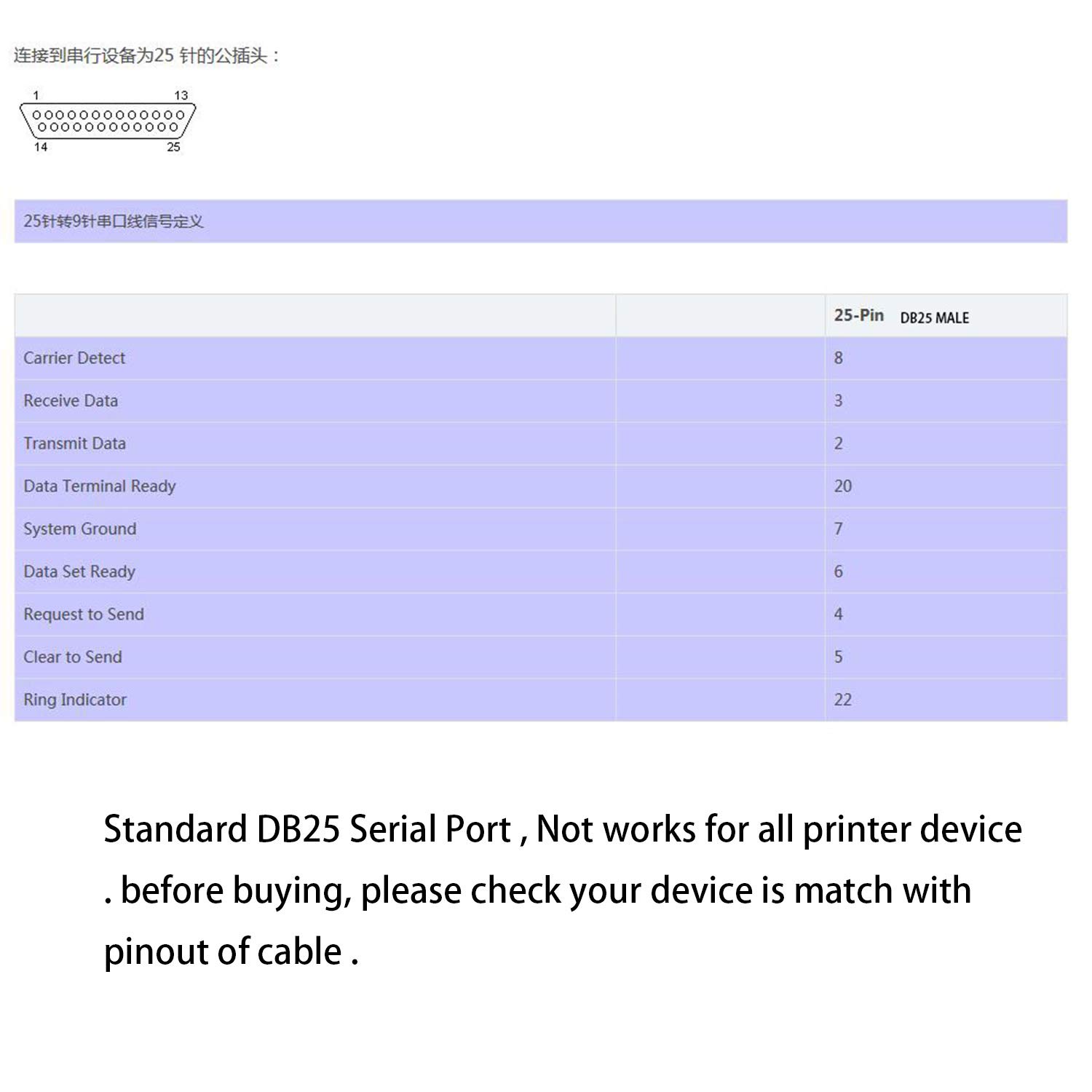

DB25 pin assignment: 2-TXD, 3-RXD, 4-RTS, 5-CTS, 6-DSR, 7-GND, 8-DCD, 20-DTR, 22-RI as standard.
24/28AWG copper, PVC jacket with shielding
USB RS232 COM Port Converter Cable
Both sides are molded from PE and PVC
USB Serial Adapter Cable
USB COM232 Adapter Cable
USB RS232 DB25 Adapter Cable
USB suspend states are supported via SUSPEND pins
All handshake and modem interface signals
Supported data formats: data bit: 5, 6, 7 and 8,
Stop bits: 1, 1.5 and 2. Parity: odd, even,
Marking, spaces, no parity
Baud rates: 300bps to 1Mbits
576 byte reception buffer; 640 bytes transferred
Hardware or X-On / X-Off handshake is supported. Even drawing support.
Line interruption transmission.
0.3 m length in stock.
Update serial PLCs, modem to USB, barcode reader, scanner, etc.
Compatible Serial PC Performance
Supports Windows 7/8 / 8.1 / XP / 9X / 2000, Linux, Mac etc
Package:
1 x 30 cm USB DB25 cable
Serial DB25 cable, not P-a-r-a-l-l-a-l cable, both side PE+PVC over-molded.
CP2102+ZT213 chip usb rs232 to db25 serial printer cable
Support Win 7, Win 8, 8.1, win 10, mac, Android

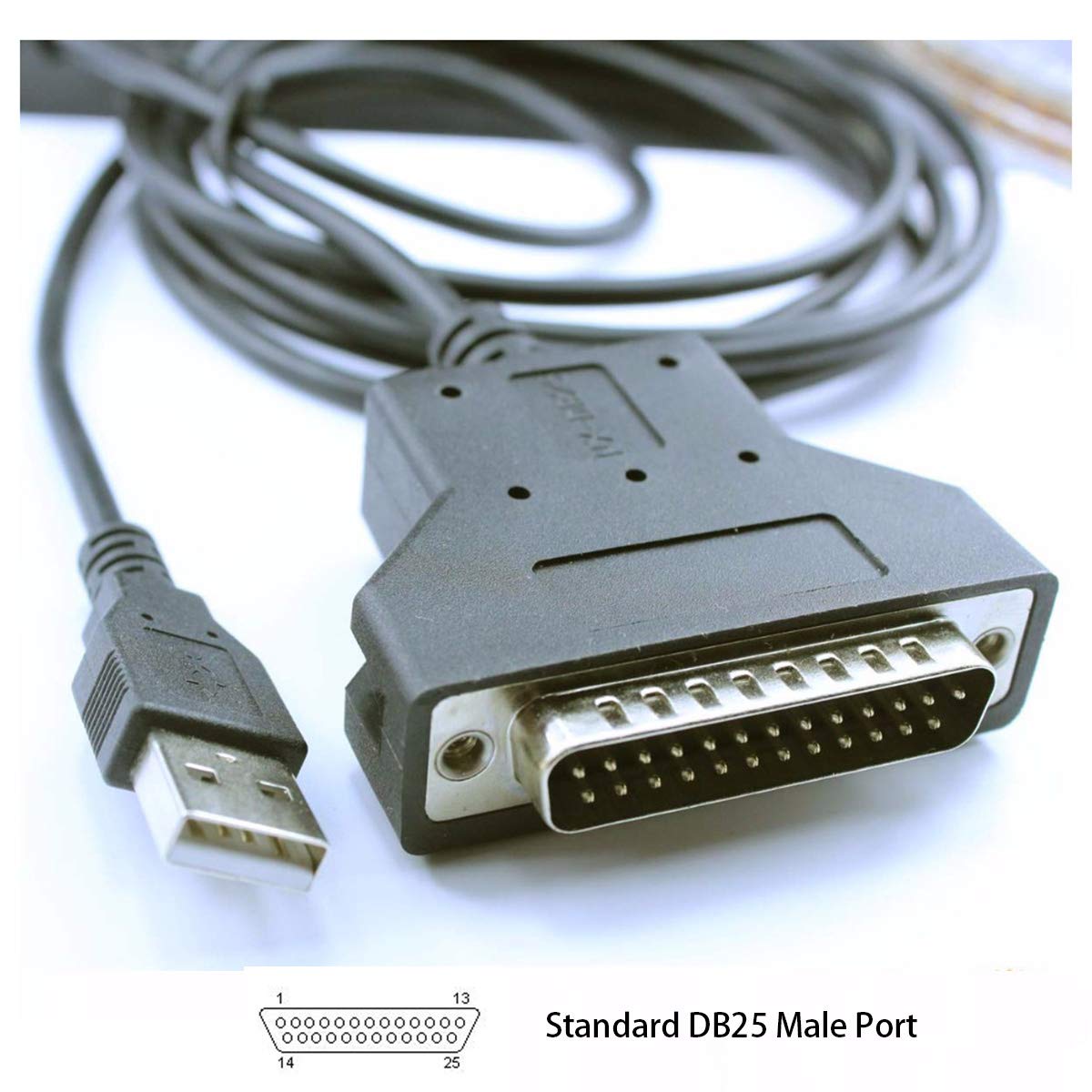

DB25 male pinout: 2-TXD, 3-RXD, 4-RTS, 5-CTS, 6-DSR, 7-GND, 8-DCD, 20-DTR, 22-RI as standard;This is a USB Serial DB25 Male Standard Cable, Due to Different Printer with Different Pinout, So, this cable Not Works for all printers, please check your device is match with this standard pinout before buying . thank for your support and understand .
Length:180cm, the driver download:http://silabs.com/products/mcu/pages/usbtouartbridgevcpdrivers.aspx
